Description

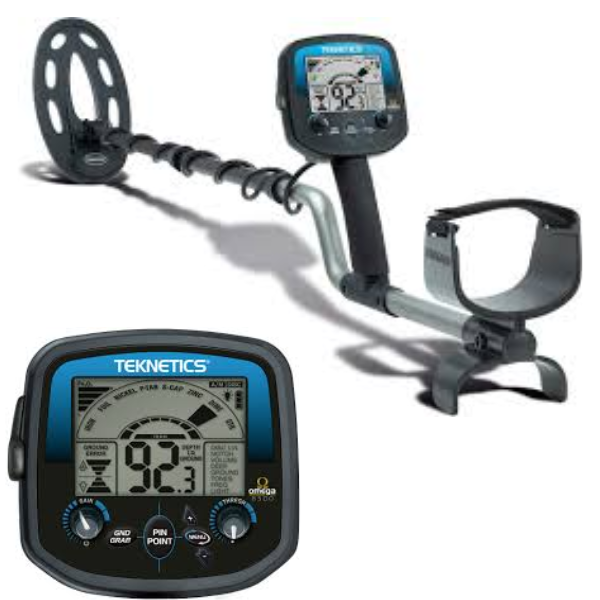

Teknetics Omega 8500 Metal Detector:

A Detailed Overview

The Teknetics Omega 8500 Metal Detector is a well-rounded and advanced. Detector designed to cater to both beginners and
experienced detectorists. Known for its user-friendly interface. Versatile settings, and excellent performance, the Omega 8500 stands out
as one of Teknetics’ most popular models. In this guide, we’ll delve into the key features, specifications, and tips for using the Teknetics
Omega 8500 effectively.

Key Features of the Teknetics Omega 8500

Advanced Target ID System

One of the prominent features of theTeknetics Omega 8500 is its advanced target ID system. The detector provides a clear and precise
numeric target ID on the LCD screen, ranging from 1 to 99. This target ID helps users identify the type of metal detected, making it easier
to decide whether to dig.

Low Numbers (1-20): Typically indicate iron or steel.

Mid-Range Numbers (21-69): Often represent gold, pull tabs, or aluminum.

High Numbers (70-99): Usually correspond to silver, copper, and other valuable metals.

Adjustable Notch Discrimination

The Omega 8500 offers adjustable notch discrimination. Allowing users to selectively ignore certain types of metal while focusing on
others. This feature is particularly useful in areas with a lot of trash or unwanted items, such as bottle caps and nails. By adjusting the
notch settings, users can filter out these items and focus on more valuable targets.

Multiple Operating Modes

The Teknetics Omega 8500 is equipped with several operating modes to enhance the detecting experience:

Discrimination Mode: Allows you to reject unwanted metals and focus on specific types of targets.

All-Metal Mode:. Detects all types of metals without discrimination, providing the maximum depth and sensitivity.

Pinpoint Mode: Helps users accurately locate the exact position of a target, reducing the need for extensive digging.

Ground Balancing Features

Ground balancing is crucial for maintaining. The detector’s sensitivity and accuracy in various soil conditions. The Omega 8500 offers
both automatic and manual ground balancing:

Automatic Ground Balancing: The detector adjusts itself to the mineral content of the soil. Making it easier for beginners to use in
diverse environments.

Manual Ground Balancing: For advanced users, manual ground balancing provides more control. Allowing for fine-tuning in highly
mineralized or complex ground conditions.

Sensitivity and Frequency Control

The Omega 8500 offers adjustable sensitivity and frequency control. Enabling users to tailor the detector’s performance based on the
environment. Higher sensitivity increases the depth of detection. While frequency adjustments help minimize interference from nearby
detectors or electrical sources.

Enhanced Audio System

This detector comes with an enhanced audio system. That provides clear and distinct audio signals for different types of metals. The
Omega 8500 features multiple audio tones, allowing users to identify targets based on sound alone. This is particularly useful when
searching in noisy environments or when visual monitoring of the screen is not feasible.

Intuitive LCD Display

The LCD display of the Teknetics Omega 8500 is large and easy to read, even in bright sunlight. It shows all the critical information at a
glance, including target ID. Ground balance, depth indicator, battery status, and operating mode. The display also has a backlight option,
making it suitable for low-light conditions or nighttime detecting.

Ergonomic Design

Weighing only 2.9 pounds (1.3 kg), the Omega 8500 is lightweight and designed for comfort. The detector features an ergonomic handle
with a padded grip and an adjustable armrest. Allowing for prolonged use without fatigue. The shaft is also adjustable, accommodating
users of different heights.

Technical Specifications

Operating Frequency: 7.8 kHz

Search Coil: 10-inch concentric coil (waterproof)

Target ID: Numeric (1-99)

Sensitivity Levels: Adjustable

Discrimination: Adjustable notch discrimination

Ground Balance: Manual and automatic

Audio Tones: Multiple tone ID options

Display: LCD screen with backlight

Battery: 1 9V battery (up to 20 hours of use)

Weight: 2.9 pounds (1.3 kg)

Warranty: 5 years

How to Use the Teknetics Omega 8500

Setting Up the Detector

Assemble the Detector: Attach the search coil to the lower shaft and connect the coil cable to the control box. Ensure all
components are securely fastened.

Insert the Battery: The Omega 8500 uses a single 9V battery. Insert it into the battery compartment, ensuring proper alignment.

Adjust the Shaft: Customize the shaft length to match your height for a comfortable detecting experience.

Operating the Omega 8500

Power On: Press the power button to turn on the detector. The LCD screen will light up, displaying the current settings and battery
status.

Select a Mode: Choose between Discrimination. All-Metal, or Pinpoint Mode depending on your detecting goals. Discrimination
Mode is ideal for filtering out unwanted targets. While All-Metal Mode provides maximum depth.

Adjust Sensitivity and Frequency:. Fine-tune the sensitivity and frequency settings based on your environment. Higher sensitivity
increases depth but may also pick up more ground noise. While frequency adjustments help reduce interference.

Ground Balancing: Use either the automatic or manual ground balancing feature to adjust. The detector for optimal performance in
different soil conditions.

Begin Detecting: Sweep the search coil over the ground in slow, overlapping motions. Pay attention to the audio signals and target
ID numbers displayed on the screen.

Use Pinpoint Mode: Once a target is detected, switch to Pinpoint Mode to accurately locate its position before digging.

Tips for Effective Metal Detecting

Practice in Familiar Areas: Start in areas you know well to get accustomed to the detector’s features and signals.

Use Headphones: Wearing headphones can help you hear faint signals more clearly. Which is crucial when searching for deep
targets.

Sweep Slowly and Methodically: Move the search coil slowly and keep it close to the ground to maximize depth detection and
accuracy.

Maintenance and Care

Cleaning: After each use, clean the search coil and wipe down the control box with a damp cloth. Avoid getting water into the
electronics.

Battery Care: Remove the battery if the detector will not be used for an extended period to prevent leakage.

Storage: Store the detector in a cool, dry place, and disassemble the shaft if necessary to save space.

Conclusion

The Teknetics Omega 8500 Metal Detector is a versatile and powerful tool. That offers advanced features for both novice and
experienced detectorists. With its adjustable notch discrimination, multiple operating modes, and precise target ID system. The Omega
8500 excels in various detecting environments, from coin shooting to relic hunting. By understanding and utilizing its features. You can
enhance your metal detecting experience and increase. Your chances of finding valuable treasures.

Personal Experience

I have Personally used this detector. It gives you a good depth into the ground. it is a very strong detector it doesn’t matter if dropped it is
made of good quality it also gives you a good drop. Also gives you warranty. Initially it gives you little problem to operate but once you get
the hang of it then it becomes very easy. for you first I learned it my self and then it It is very easy to use and Good metal detector on the
ground.
