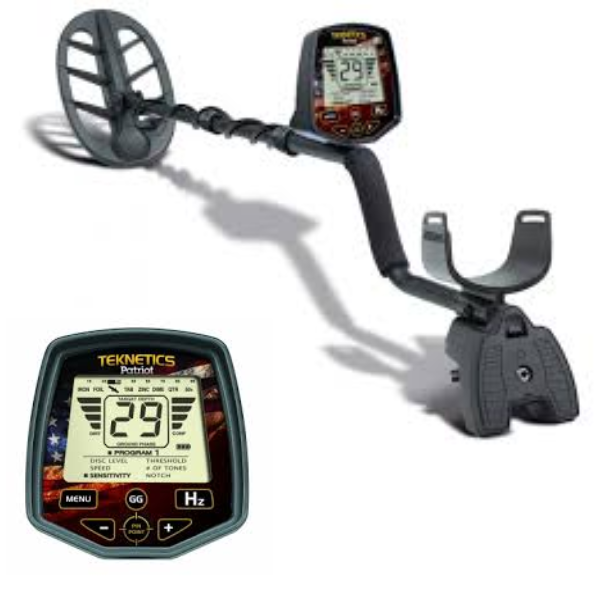

Teknetics Patriot Metal Detector:

A Comprehensive Guide

The Teknetics Patriot Metal Detector is a versatile and highly capable device. Designed for both novice and seasoned detectorists. It
offers a range of advanced features that make it suitable for a variety of detecting environments. From coin hunting to relic searching. In
this guide, we’ll explore the key features, technical specifications, and tips on how to get the most out of your Teknetics Patriot Metal
Detector.

Key Features of the Teknetics Patriot

Advanced Target ID System

The Teknetics Patriot is equipped with an advanced target ID system, which is a crucial feature for accurate metal detection. This
system displays a numeric ID on the large LCD screen, ranging from 1 to 99, that helps users identify the type of metal beneath the
surface. Each number corresponds to a specific type of metal, allowing detectorists to make informed decisions on whether to dig or not.

Low Numbers (1-20): Typically indicate iron or other ferrous metals.

Mid-Range Numbers (21-69): Often correspond to gold, pull tabs, or aluminum.

High Numbers (70-99): Usually represent silver, copper, and other valuable metals.

Multiple Search Modes

The Teknetics Patriot offers several search modes to enhance versatility and performance:

Discrimination Mode:. This mode allows users to filter out unwanted metals, such as nails and bottle caps, focusing only on the
desired targets. It’s especially useful in areas with a lot of trash.

All-Metal Mode:. This mode detects all metal types without discrimination. Providing the maximum depth and sensitivity. It’s ideal
for locating deeply buried objects.

Pinpoint Mode:. This feature helps users precisely locate a target’s exact position. Reducing unnecessary digging and saving time.

Ground Balancing Options

Ground balancing is essential for maintaining. The detector’s performance in different soil conditions. TheTeknetics Patriot offers both
automatic and manual ground balancing:

Automatic Ground Balancing:. This feature adjusts the detector to the soil’s mineral content automatically. Making it easier for
beginners to use in various environments.

Manual Ground Balancing:. Advanced users can take control with manual ground balancing. Which allows for fine-tuning in highly
mineralized or complex ground conditions.

Adjustable Sensitivity and Frequency

The Patriot provides adjustable sensitivity settings. Which are crucial for optimizing the detector’s performance based on the detecting
environment. Higher sensitivity increases the detection depth, but it may also pick up more ground noise. The detector also features
frequency adjustment. Which helps reduce interference from nearby detectors or electrical sources.

Enhanced Audio and Multiple Tone ID

The audio system on the Teknetics Patriot is designed to provide clear and distinct signals. It features multiple tone ID options that allow
users to differentiate between various types of metals based on the sound alone. This feature is particularly useful in noisy environments
or. When visual monitoring of the screen is challenging.

Lightweight and Ergonomic Design

Weighing only 2.9 pounds (1.3 kg), the Teknetics Patriot is lightweight and ergonomically designed for extended use. The detector’s
adjustable shaft and padded armrest. Ensure comfort during prolonged detecting sessions. Its compact design also makes it easy to carry
and transport.

Intuitive LCD Display

The LCD display on the Patriot is user-friendly and provides all essential information at a glance, including target ID. ground balance,
depth indicator, and battery status. The display is easy to read in various lighting conditions. And its intuitive layout makes it simple for
users of all experience levels to navigate.

Technical Specifications

Operating Frequency: 13 kHz

Search Coil: 11-inch bi-axial waterproof coil

Target ID: Numeric (1-99)

Sensitivity Levels: Adjustable

Discrimination: Adjustable notch discrimination

Ground Balance: Manual and automatic

Audio Tones: Multiple tone ID options

Display: LCD screen

Battery: 1 9V battery (up to 25 hours of use)

Weight: 2.9 pounds (1.3 kg)

Warranty: 5 years

How to Use the Teknetics Patriot

Setting Up the Detector

Assemble the Detector: Attach the search coil to the lower shaft and connect the coil cable to the control box. Ensure all
components are securely fastened.

Insert the Battery: The Patriot uses a single 9V battery. Insert it into the battery compartment, ensuring proper alignment.

Adjust the Shaft: Customize the shaft length to match your height for a comfortable detecting experience.

Operating the Patriot

Power On: Press the power button to turn on the detector. The LCD screen will light up, displaying the current settings and battery
status.

Select a Mode:. Choose between Discrimination, All-Metal, or Pinpoint Mode depending on your detecting goals. Discrimination
Mode is ideal for filtering out unwanted targets. While All-Metal Mode provides maximum depth.

Adjust Sensitivity and Frequency:. Fine-tune the sensitivity and frequency settings based on your environment. Higher sensitivity
increases depth but may also pick up more ground noise. While frequency adjustments help reduce interference.

Ground Balancing:. Use either the automatic or manual ground balancing feature to adjust. The detector for optimal performance
in different soil conditions.

Begin Detecting: Sweep the search coil over the ground in slow, overlapping motions. Pay attention to the audio signals and target
ID numbers displayed on the screen.

Use Pinpoint Mode: Once a target is detected, switch to Pinpoint Mode to accurately locate its position before digging.

Tips for Effective Metal Detecting

Start in Familiar Areas: Practice in areas you know well to get accustomed to the detector’s features and signals.

Use Headphones:. Wearing headphones can help you hear faint signals more clearly, which is crucial when searching for deep
targets.

Sweep Slowly and Methodically: Move the search coil slowly and keep it close to the ground to maximize depth detection and
accuracy.

Maintenance and Care

Cleaning: After each use, clean the search coil and wipe down the control box with a damp cloth. Avoid getting water into the
electronics.

Battery Care: Remove the battery if the detector will not be used for an extended period to prevent leakage.

Storage: Store the detector in a cool, dry place, and disassemble the shaft if necessary to save space.

Conclusion

The Teknetics Patriot Metal Detector is an exceptional choice for those seeking a reliable. Versatile, and easy-to-use detector. With its
advanced target ID system, multiple search modes, and ergonomic design. The Patriot is well-suited for various detecting environments.
Whether you’re searching for coins, relics, or treasure. By understanding and utilizing its features. You can enhance your metal detecting
experience and increase your chances of finding valuable items.

1/2

Personal Experience

I have Personally used this detector. It gives you a good depth into the ground. it is a very strong detector it doesn’t matter if dropped it is
made of good quality it also gives you a good drop. Also gives you warranty. Initially it gives you little problem to operate but once you get
the hang of it then it becomes very easy. for you first I learned it my self and then it It is very easy to use and Good metal detector on the
ground.
